YEJ series electromagnetic braking three-phase induction electric motor

Category：

YEJ

0576-84031188  0576-84222188

sophie@zbaogroup.com

  • Description
  • Technical parameter

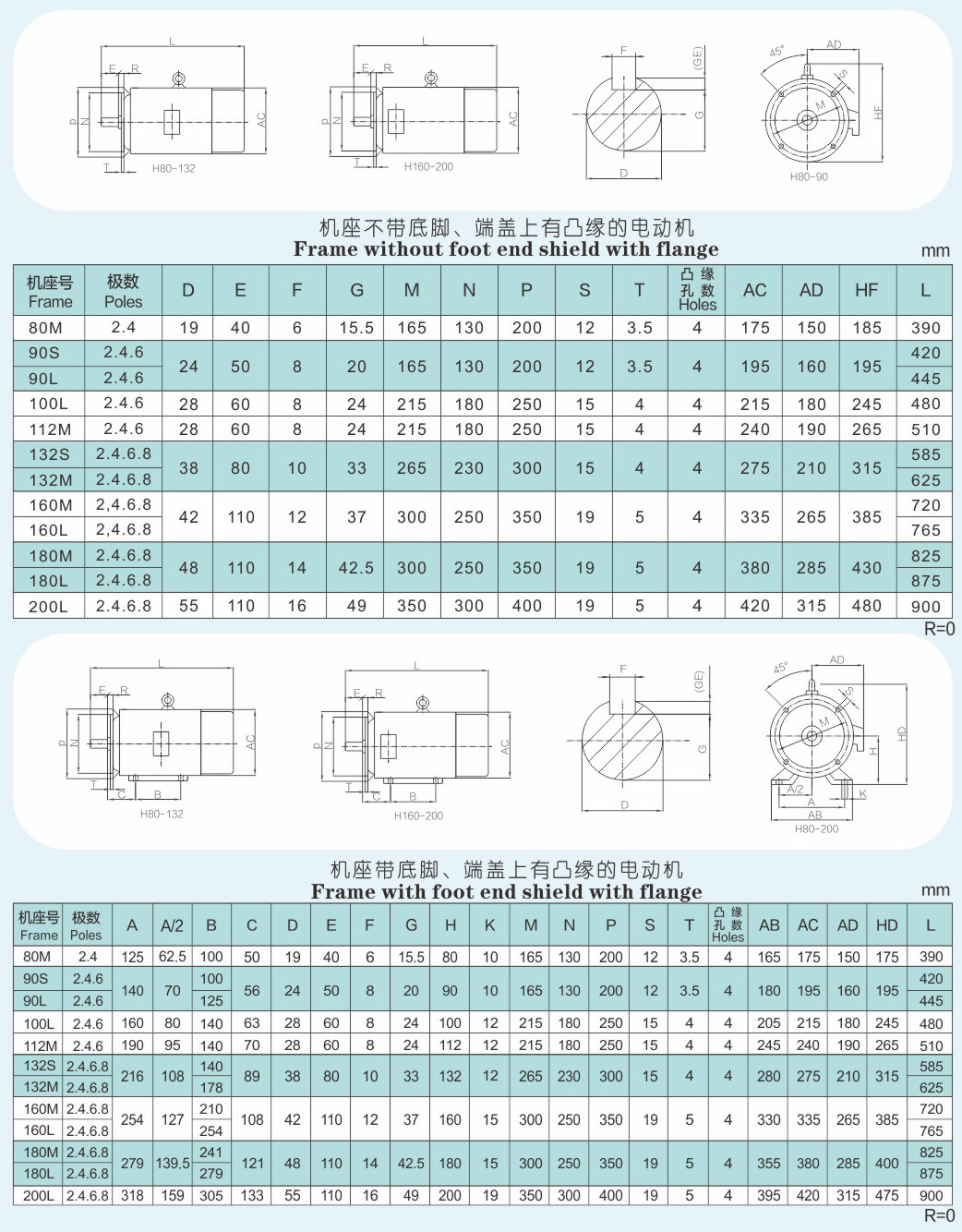

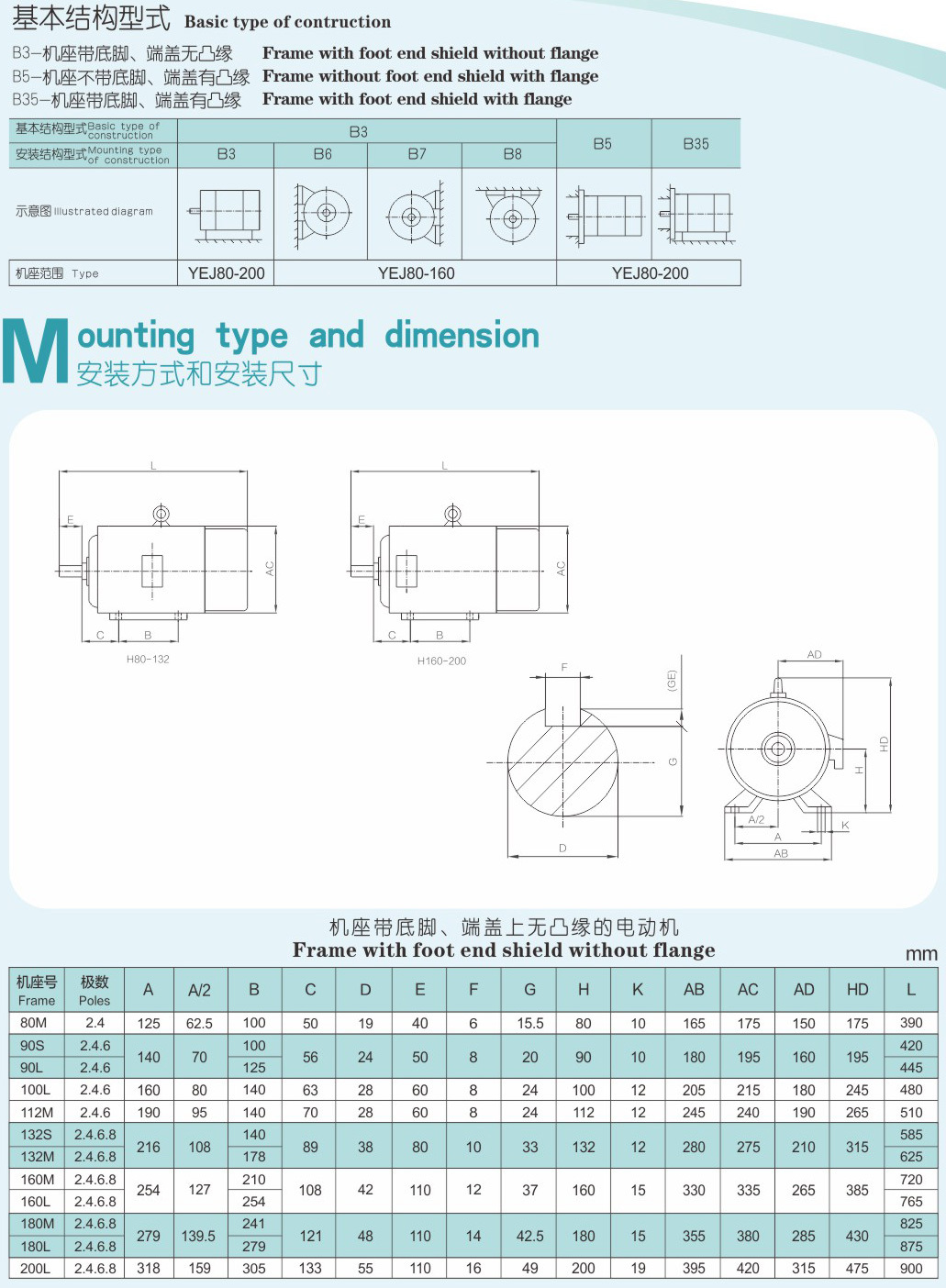

  • Installation and size
  • Anatomical drawing
  • Bearing specifications
    • Commodity name: YEJ series electromagnetic braking three-phase induction electric motor
    • Commodity ID: 1104100944997142528

    YEJ series electromagnetic braking three-phase induction electric motor is a derivative product of Y(Y2)series three- phase induction electric motor by attaching a coaxial electromagnetic braking unit to its rear end This series motors have the same power level and installation size with that of Y(Y2)series.Currently our electromagnetic braking units are available with two types: AC and DC.


    This series are applicable in environment free of flammable, explosive or corrosive gas. Its features of quick braking, accurate positioning, reciprocal moving and anti-sliding make it an ideal driving or auxiliary driving mechanism in various machines such as lifts, transportation machines, packaging machines, printing machines, food machines, construction machines, wood machines, reduction machines and metallurgy machines etc.


    Structure
    The degrees of protection for main unit of motor:IP44; The degrees of protection for braking unit: IP23 ;
    Cooling type: IC411 ;
    Insulation class: B.


    Operation Conditions
    Rated voltage: 380V;
    Rated Frequency: 50Hz;
    Operation mode is S1 (continuous duty);
    Less than 1000 meters above elevation;
    The variation of temperature to the season shall be kept with in15-+40t;
    When the lowest monthly average temperature is not less than 25t, the average humidity should not be more than9096o.

  • Img

  • Img


  •


  •

    Frame Size POLES High Eifficiency Motor(ID*OD*Width)
    Driving end Non driving end
    80 2.4.6.8 6204-2RZ(20*47*14)
    90 2.4.6.8 6205-2RZ(25*52*15)
    100 2.4.6.8 6206-2RZ(30*62*16)
    112 2.4.6.8 6206-2RZ
    132 2.4.6.8 6208-2RZ(40*80*18)
    160 2 6309-2RZ(45*100*25) 6209-2RZ
    160 4.6.8
    180 2 6311-2RZ(55*120*29) 6211-2RZ
    180 4.6.8
    200 2 6312-2RZ(60*130*31) 6212-2RZ
    200 4.6.8
    225 2 6313-2RZ(65*140*33) 6312-2RZ
    225 4.6.8
    250 2 6313 6313
    250 4.6.8 6314(70*150*35)
    280 2 6314 6314
    280 4.6.8 6317(85*180*41)
    315 2 6317
    315 4.6.8.10 6319(95*200*45)
    355 2 6322(110*240*50)
