YE2 series High Efficiency three-phase induction electric motor

Category:



  • Description
  • Technical parameter

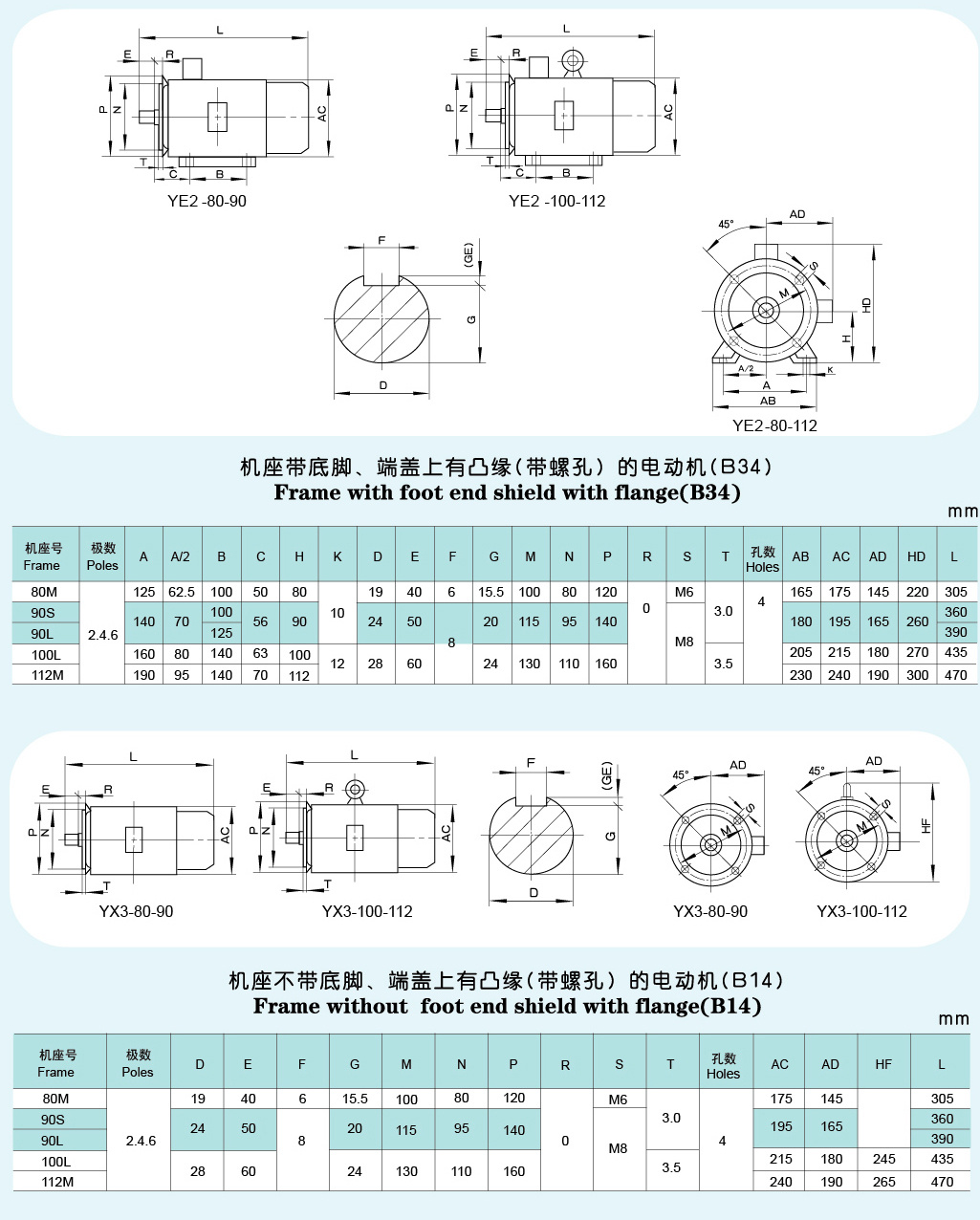

  • Installation and size
  • Anatomical drawing
  • Bearing specifications
    • Commodity name: YE2 series High Efficiency three-phase induction electric motor
    • Commodity ID: 1104100931063664640

    YE2 series high-efficiency three-phase asynchronous motor is a totally-enclosed squirrel cage three-phase asynchronous motor manufactured by adopting novel materials and novel processes. Its efficiency index is consistent with the efficiency value of grade 3 energy efficiency specified in GB18613-2012 Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Small and Medium Three-Phase Asynchronous Motors, and is consistent with the IE2 efficiency value of IEC60034-30 as well as the efficiency value of European EFF1 high-efficiency motor.



    This series of motor is characterized by good energy-saving effect , reasonable structure, high protection grade, large margin of temperature rise, etc., is suitable for various application occasions of machine tools, fans, water pumps, packing machinery, transport machinery, etc., and is an ideal upgrade product for Y2 and Y3 series motors.



    Structure
    The degrees of protection: IP55;;
    Cooling type: IC411;
    Insulation class: F.



    Operation Conditions
    Rated voltage: 380V;
    Rated Frequency: 50Hz;
    Operation mode is S1 (continuous duty);
    Less than 1000 meters above elevation;
    The variation of temperature to the season shall be kept within-15 - +400C.

  • Img






  • Img







  •


  •

    Frame Size POLES High Eifficiency Motor(ID*OD*Width)
    Driving end Non driving end
    80 2.4.6.8 6204-2RZ(20*47*14)
    90 2.4.6.8 6205-2RZ(25*52*15)
    100 2.4.6.8 6206-2RZ(30*62*16)
    112 2.4.6.8 6206-2RZ
    132 2.4.6.8 6208-2RZ(40*80*18)
    160 2 6309-2RZ(45*100*25) 6209-2RZ
    160 4.6.8
    180 2 6311-2RZ(55*120*29) 6211-2RZ
    180 4.6.8
    200 2 6312-2RZ(60*130*31) 6212-2RZ
    200 4.6.8
    225 2 6313-2RZ(65*140*33) 6312-2RZ
    225 4.6.8
    250 2 6313 6313
    250 4.6.8 6314(70*150*35)
    280 2 6314 6314
    280 4.6.8 6317(85*180*41)
    315 2 6317
    315 4.6.8.10 6319(95*200*45)
    355 2 6322(110*240*50)
