ZB2 Series reducer specially equipped with electric motor

Category:



  • Description

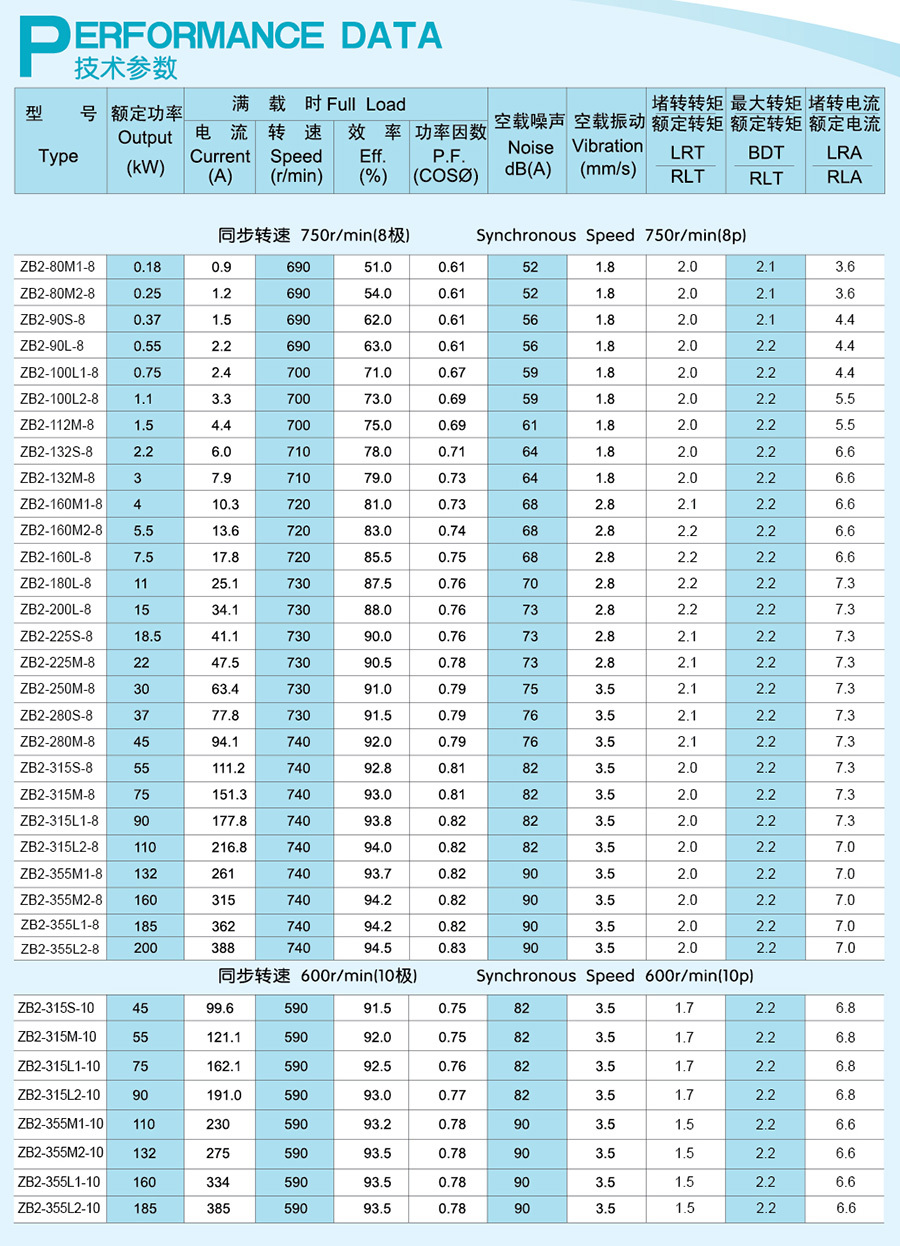

  • Technical parameter
  • Installation and size
  • Anatomical drawing
  • Bearing specifications
    • Commodity name: ZB2 Series reducer specially equipped with electric motor
    • Commodity ID: 1104100928060542976

    The ZB2 series motor is a new basic series motor designed on the basis of the Y2 series motor. It has a beautiful appearance, high efficiency, energy saving, insulation class F, and protection class IP54.



    This series of motors are suitable for general occasions without flammable, explosive or corrosive gas and mechanical power without special requirements, such as metal cutting machine tools, water pumps, fans, transportation machinery, food machinery, agricultural machinery, etc.

    This series of motors are suitable for Y-Δ starting and also suitable for heavy-load starting.



    Structure description

    The protection level of the motor is IP54;

    The cooling method of the motor is IC411 (self-fan cooling);

    The insulation class of the motor is F class.



    Conditions of Use

    Rated voltage: 380V;

    Rated frequency: 50HZ;

    Work mode: S1 (continuous work system);

    The altitude does not exceed 1000M;

    The maximum ambient air temperature should not exceed 40℃, and the minimum should be -15℃.

  •





  •






  •


  •

    Frame Size POLES High Eifficiency Motor(ID*OD*Width)
    Driving end Non driving end
    80 2.4.6.8 6204-2RZ(20*47*14)
    90 2.4.6.8 6205-2RZ(25*52*15)
    100 2.4.6.8 6206-2RZ(30*62*16)
    112 2.4.6.8 6206-2RZ
    132 2.4.6.8 6208-2RZ(40*80*18)
    160 2 6309-2RZ(45*100*25) 6209-2RZ
    160 4.6.8
    180 2 6311-2RZ(55*120*29) 6211-2RZ
    180 4.6.8
    200 2 6312-2RZ(60*130*31) 6212-2RZ
    200 4.6.8
    225 2 6313-2RZ(65*140*33) 6312-2RZ
    225 4.6.8
    250 2 6313 6313
    250 4.6.8 6314(70*150*35)
    280 2 6314 6314
    280 4.6.8 6317(85*180*41)
    315 2 6317
    315 4.6.8.10 6319(95*200*45)
    355 2 6322(110*240*50)
