IE2 3 Columns Aluminum Three-Phase Induction Motor

Category:



  • Description

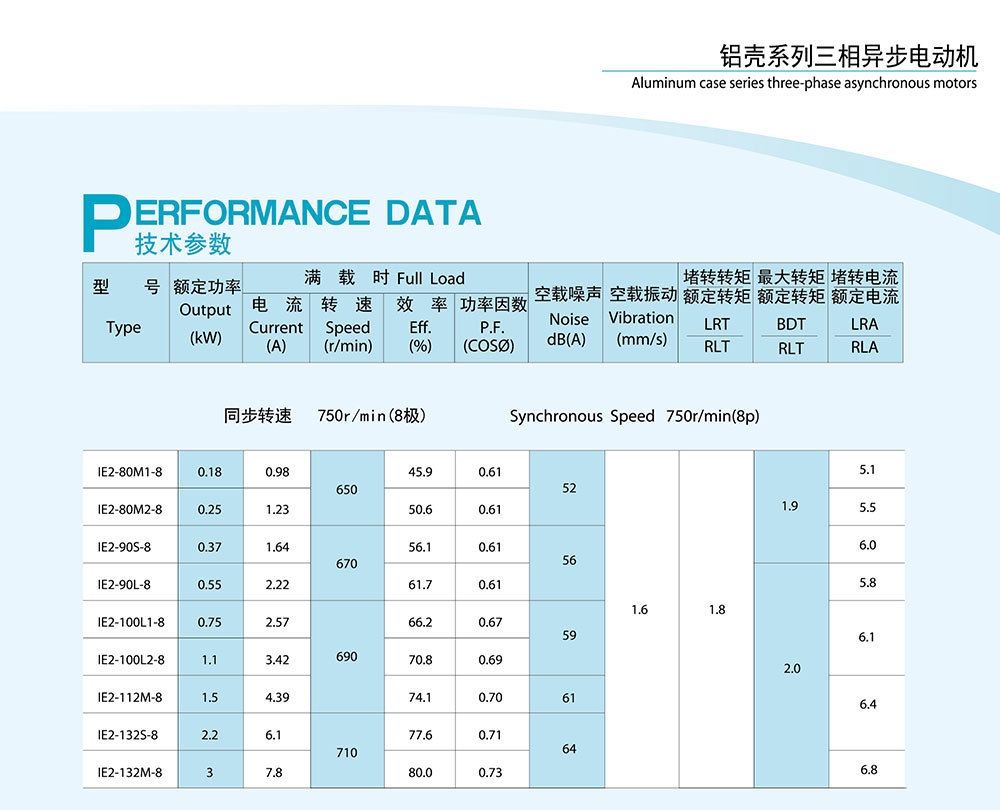

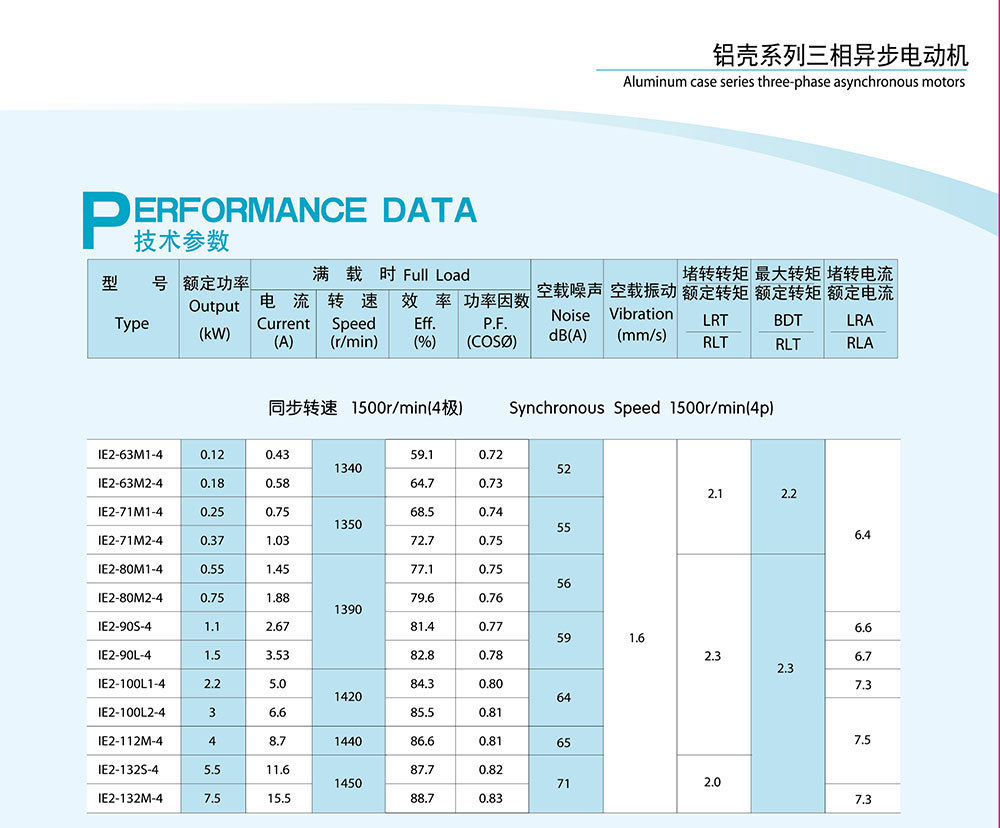

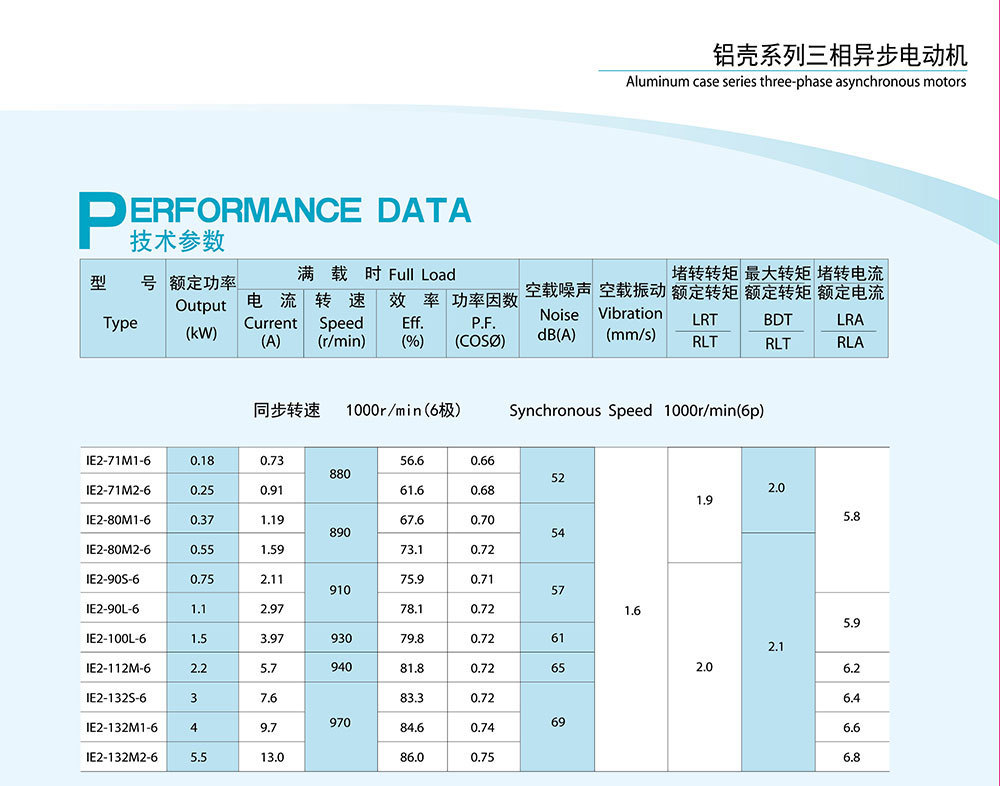

  • Technical parameter
  • Installation and size
  • Anatomical drawing
  • Bearing specifications
    • Commodity name: IE2 3 Columns Aluminum Three-Phase Induction Motor
    • Commodity ID: 1104100922729582592

      Aluminum case series three-phase asynchronous motors, with a new design of aluminum alloy die-casting housing,its installation size,electrical performance and cast iron shell the same, with a novel appearance,compact structure,easy maintenance and other characteristics,can be widely used in fans, water pumps, reducer and other fields.



      The efficiency value of this series can meet the level 3 standard stipulated in GB18613-2012,namely lE2 of EC60034-30-1:2014.



      Structure

      The degrees of protection:lP55;

      Cooling type:IC411;

      lnsulation class:155(F).



      Operation Conditions

      Rated voltage:38OV;

      Rated Frequency:50Hz;

      Operation mode is s1(continuous duty);

      Less than 1000 meters above elevation;

      The variation of temperature to the season shall be kept within -15~+40℃.

  •



  •
