- Technical parameter

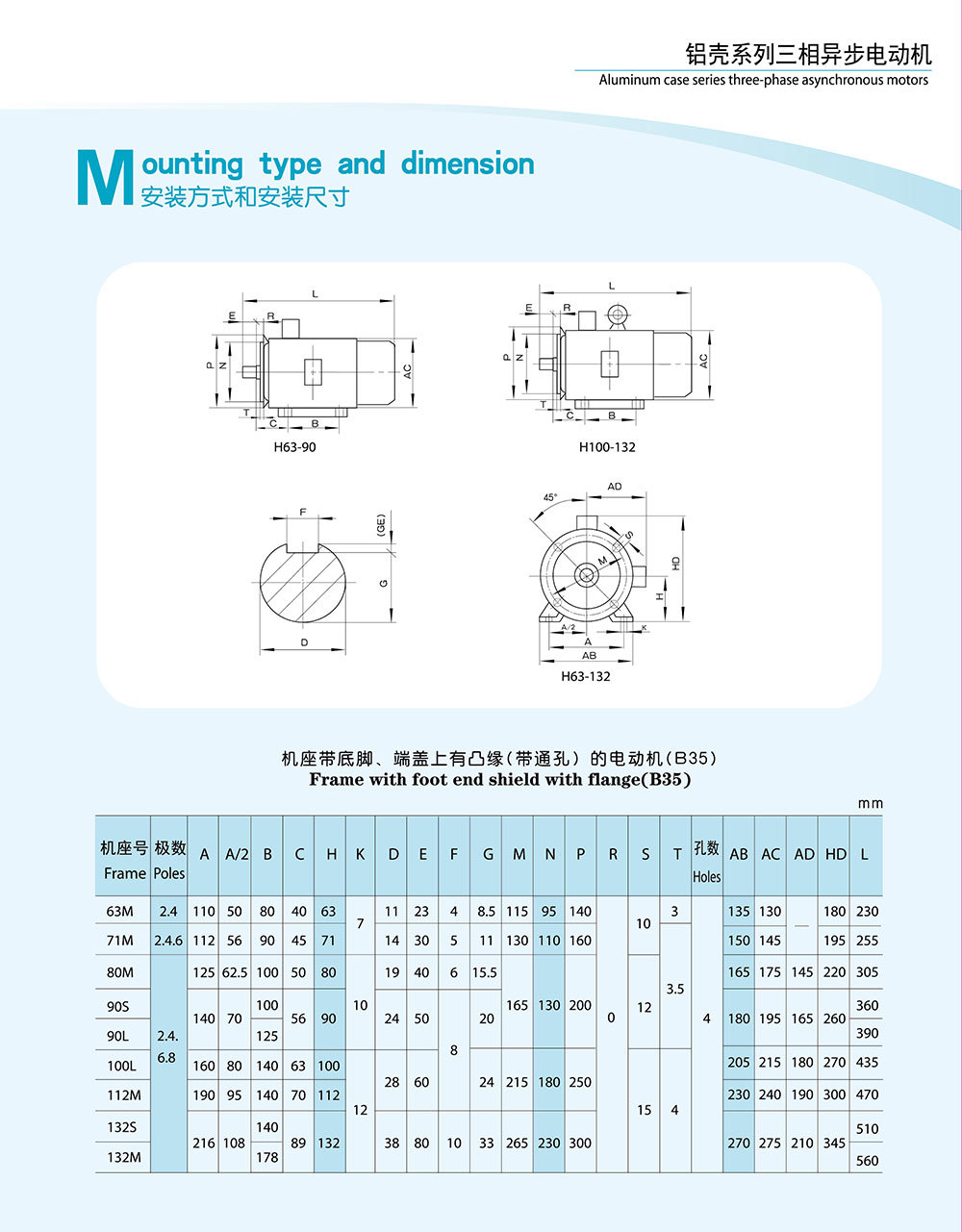

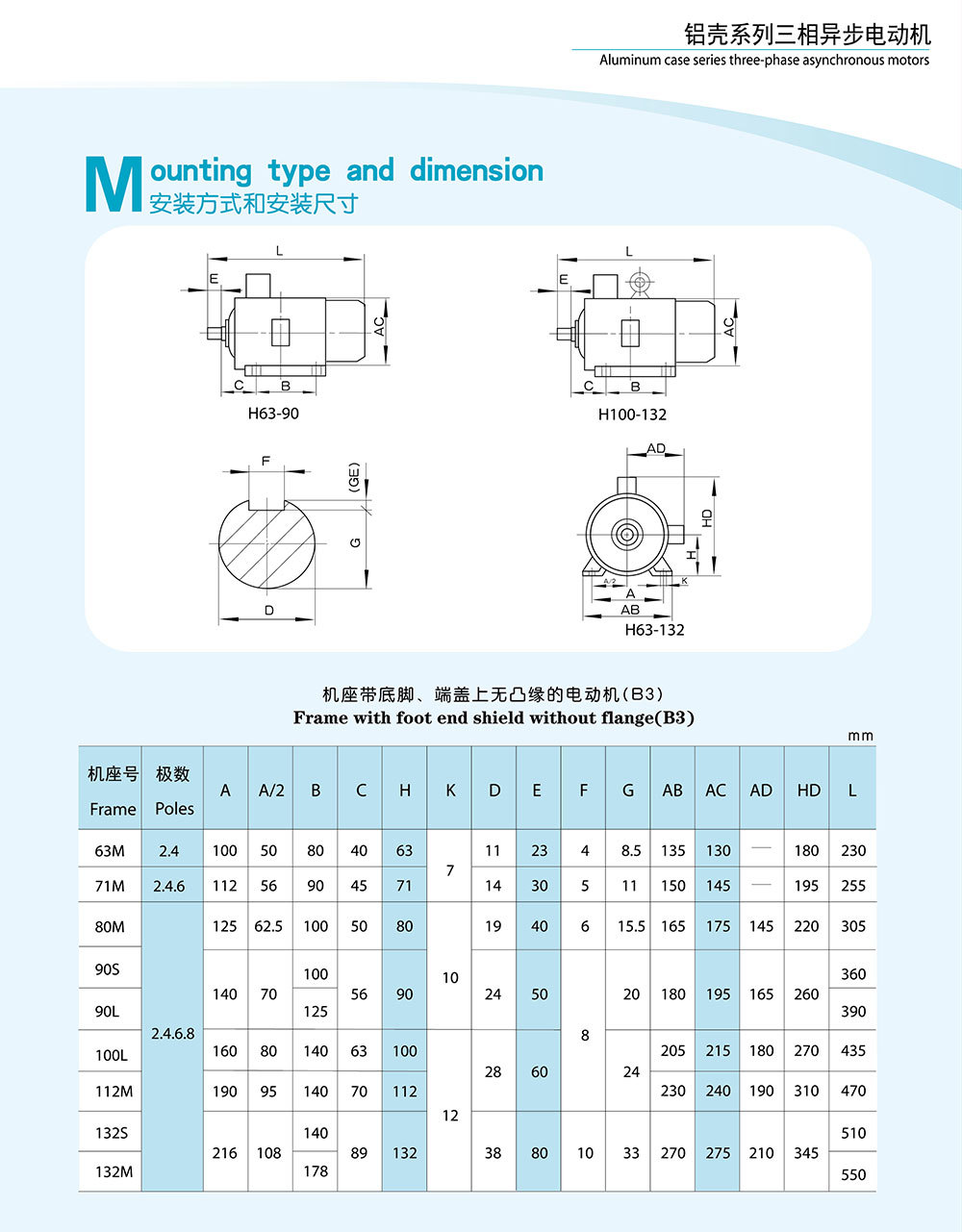

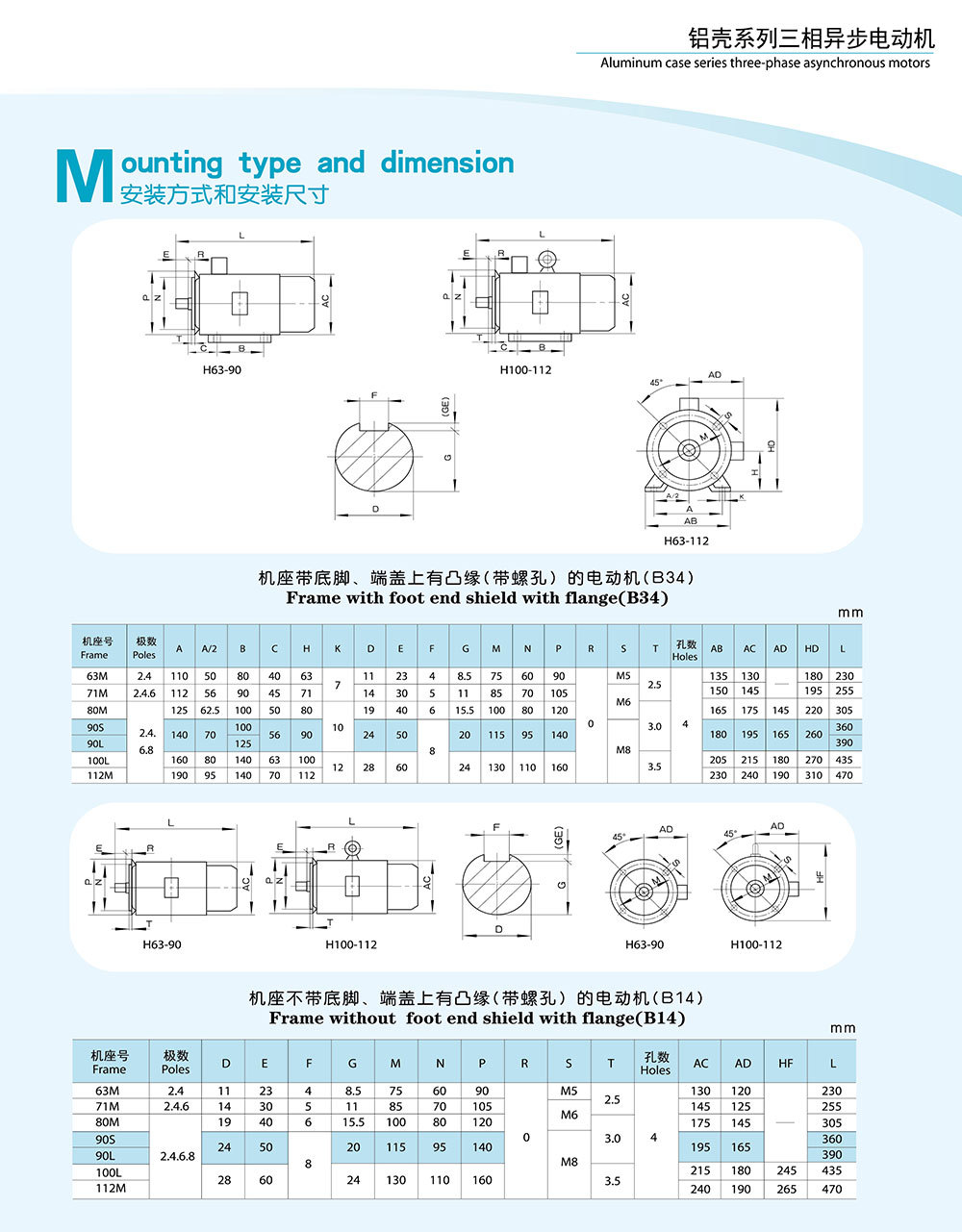

- Installation and size
- Anatomical drawing
- Bearing specifications
- Commodity name: IE1 Square Aluminum Three-Phase Induction Motor
- Commodity ID: 1104100908607361024
Aluminum case series three-phase asynchronous motors, with a new design of aluminum alloy die-casting housing,its installation size,electrical performance and cast iron shell the same, with a novel appearance,compact structure,easy maintenance and other characteristics,can be widely used in fans, water pumps, reducer and other fields.
The efficiency value of this series can meet lE1 of IEC60034-30-1:2014.
The degrees of protection:lP55;
Operation mode is s1(continuous duty);
Less than 1000 meters above elevation;
The variation of temperature to the season shall be kept within -15~+40℃.
